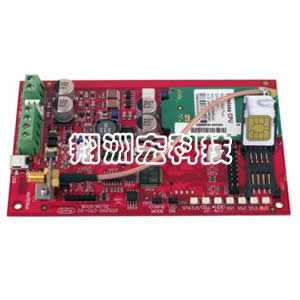

? 博世主機采用 GPRS 網絡實現安全可靠的 Conettix IP 通信 ? 使用 GSM 進行報警撥號以用作備用主機或用于其它主機 ? 博世主機的遠程編程 ? 使用 SMS（短信）或 USB 輕松進行配置 ? 易于安裝、診斷和維護 ITS-DX4020-G 允許通過商業 GPRS/GSM 網絡進行雙向 IP 或撥號通信。 典型應用包括向中心監控站報告事件以及遠程訪問博世防盜報警控制主機。 同所有 Conettix 產品一樣，ITS-DX4020-G 支持安全可靠、高度監管的 IP 通信。 ITS-DX4020-G 可與博世主機集成，從而與 Conettix 中央站設備建立蜂窩式 IP 連接。 ITS-DX4020-G 具有靈活的輪詢功能，這使之成為客戶擺脫傳統電話服務的主要監管途徑，或者作為無線備用途徑。 對于使用 PSTN 接收器的安裝環境而言，ITS-DX4020-G 使用 GSM 撥打接收器并使用 Contact ID 或 SIA 格式進行通信。 注：GPRS 功能要求由蜂窩網絡提供商提供的適當數據計劃。
System Overview

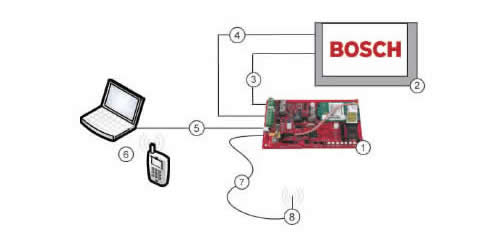

1. ITS-DX4020-G GPRS/GSM Communicator
2. Compatible Control Panel
3. Control Panel Dialer Connection (optional)
4. Control Panel Bus and Power Connection
5. USB Type A (host)-to-USB Mini B (device) Cable
(not included)
6. Local PC or SMS-capable Cell Phone for Configuration
7. Antenna Cable
8. Magnetic Base Antenna

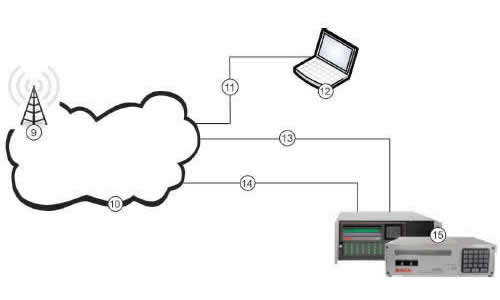

9. Base Station on Wireless Carrier's Network
10. Internet, WAN, Ethernet, or PSTN network
11. Remote PC's Network Connection
12. Remote PC Running Remote Programming
Software (RPS)
13. Ethernet Connection
14. PSTN Connection
15. Conettix D6600 or Conettix D6100i Receiver
Functions
Conettix IP communication via GPRS
In addition to the GPRS security provided by the network operator, the ITS?DX4020?G uses our Conettix IP protocol that supports:
? Flexible polling intervals
? Resistance to Denial of Service attacks
? 128 bit AES encryption
? Anti-replay / anti-substitution keys
Contact ID Alarm dialing via GSM
The ITS?DX4020?G supplies a PSTN line connection with phone voltage to the panel. The PSTN over GSM connection can be used to send primary or backup events using Contact ID. The ITS?DX4020?G provides a dial tone, captures the dialed number, and establishes the GSM call
to a PSTN receiver in the monitoring station.
Remote programming of Bosch panels
The ITS-DX4020-G supports secure RPS programming of compatible Bosch panels. It also supports incoming voice menu calls for Easy Series panels.
Easy provisioning via SMS (text) or USB
The ITS-DX4020-G can be provisioned over USB with onscreen menu. For installers without a PC, the ITS?DX4020?G also supports provisioning via SMS messaging.
Easy installation, troubleshooting and maintenance
? No networking expertise required at field site (no firewall or router settings)
? Firmware upgradeable
? No PC or special tools required for installation and troubleshooting
| LED | Function |
| Status | System Status Indicator |
| Cell IP | Network Connection Status |
| Audio | Call Status |
| SS1-SS3 | GSM Signal Strength |
| Bus | Panel Bus Connection Status |
Certifications and Approvals
| Region | Certification | |
| Europe | CE | (LVD, EMC, R&TTE) |
| Global | PTCRB | Request #19428 |
| Belgium | INCERT | B-509-0005 |
| USA | UL | AMCX: Central Station Alarm Units (ANSI/ UL 1610), AOTX:, Local Alarm Units (ANSI/UL 609, ANSI/UL 464), APAW: Police-station-connected Alarm Units (ANSI/UL 365, ANSI/UL 464), APOU: Proprietary Alarm Units (ANSI/UL 1076), NBSX: Household Burglar Alarm System Units (ANSI/UL 1641), UOJZ: Control Units, System (ANSI/UL 864) |
| CSFM | 7300-1615:0240 FIRE ALARM CONTROL UNIT ACCESSORIES/MISC. DEVICES 7165-1615:0238 FIRE ALARM CONTROL UNIT (COMMERCIAL) 7167-1615:0239 CONTROL UNIT (HOUSEHOLD) CONTROL UNIT (HOUSEHOLD) |
|
| FCC | CFR47 Parts 15.107 and 15.109 Class B | |
| FDNY-CoA | 6059 | |
| AT&T | Notice of Network Compatibility; August 9, 2010 |
|
| Australia | Austel | Approved |
| Norway | FGI | T-127/09, ATS4, grade 3 |
Note：For declarations refer to the Bosch website.:
Installation/Configuration Notes
Compatibility Information
| Control Panels: | DS7200V2 Series1 (firmware version 2.10 or later) |
| DS7400XiV42 (firmware version 4.10 or later) |
|
| FPD-7024 Fire Alarm Control Panel | |
| Easy Series (firmware version 3.0 or later) | |
| GV2 Series3 (firmware version 7.07 or later) | |
| GV3 Series3 | |
| Applications: | RPS v5.10 or higher |
1 Refer to your control panel's documentation for
programming instructions.
2 Refer to the DS7400XiV4 Reference Guide (P/N: 4998154963) and DS7400XiV4 Release Notes (P/N: 4998154793) for programming instructions.
3 The GV2 Series consists of the D9412GV2, D7412GV2,
and D7212GV2 control panels. The GV3 Series consists of
the D9412GV3, D7412GV3, and D7212GV3 control panel.
Refer to your control panel's documentation for
programming instructions.
Note：Use the DX4020 network programming
instructions for programming the
ITS?DX4020-G.
Connection Considerations
The ITS-DX4020?G uses a four-wire connection to the
control panel bus with two data wires and two power
wires that connect to the control panel. For GSM dialing,
it connects using two wires to the control panel's PSTN
output. For proper operation, the ITS?DX4020?G requires a
metallic surface mounting location with a high quality
signal from the desired wireless carrier.
Mounting Considerations
The ITS-DX4020-G mounts to the standard 3-hole patterns
in supported control panel enclosures. With the D137
mounting bracket (not included), the ITS-DX4020?G can
be mounted to other enclosures.
Wiring Considerations
If you are mounting the ITS?DX4020?G in a separate
enclosure, a tamper switch is required in the enclosure.
Separate power?limited wiring from non-power?limited
wiring by 6.4 mm (0.25 in).
The maximum wire resistance for control panel
connections is 1.6 Ω. The maximum wire distance is
30.5 m (100 ft) for 22 AWG wire and 61 m (200 ft) for
18 AWG wiring.
Parts Included
| Quant. | Component |
| 1 | ITS?DX4020?G Communicator |
| 1 | Hardware pack (mounting hardware, magnetic base antenna, four-wire bus/power cable, and program jumper) |
| 2 | Literature – Quick Start Guides |
| 1 | Literature - CD |
Technical Specifications
Electrical
| Current (operating): | Standy: 65 mA Alarm: 200 mA |
| Voltage (operating): | 12 VDC |
| Ripple/Noise: | 200 mVpp maximum |
| PSTN FSX Port: | 17 V minimum supplied |
| Radio: | GSM quad band radio Europe: 900 MHz and 1800 MHz North America: 850 MHz and 1900 MHz |
Environmental
| Environment: | EN50131-1 Environmental Class II - Indoor |
| Relative Humidity: | 5% to 93% non-condensing |
| Temperature (operating): | -10°C to +55°C (+14°F to +131°F) |
Mechanical
| Dimensions:: | 5.2 in. x3.1 in. x 1 in. (133 mm x 80 mm x 23 mm) |
| Antenna: | Magnetic base omni?directional 2.5 m (8.2 ft) cable with SMA connector |
| SIM Card: | 3V/1.8V SIM (compliant with GSM 11.12 recommendation) |
| USB: | Connector: mini?B) |
Ordering Information
| ITS-DX4020-G GPRS/GSM Communicator Multi?function, security communicator |
ITS-DX4020-G |
Accessories
| D203 Enclosure Works with input, output, and receiver modules where the circuit boards have throughhole or three-point mounting systems. |
D203 |
